Product

Auto Tensile Tester

STR-A/A+/M/D
Focusing on packaging and material testing technology, we are committed to quality control in industries such as healthcare, pharmaceuticals, food, packaging, textiles, and new materials. Our products are widely used in enterprises, testing institutions, universities, and research institutes.

Category:

Force & Strength

Related Products

Product Consultation

Description
Applications
Standard
Features
Parameter
Configuration
Video
PDF Download

Commodity name: Auto Tensile Tester
Commodity ID: STR-A/A+/M/D

STR-A/A+/M/D

Function:

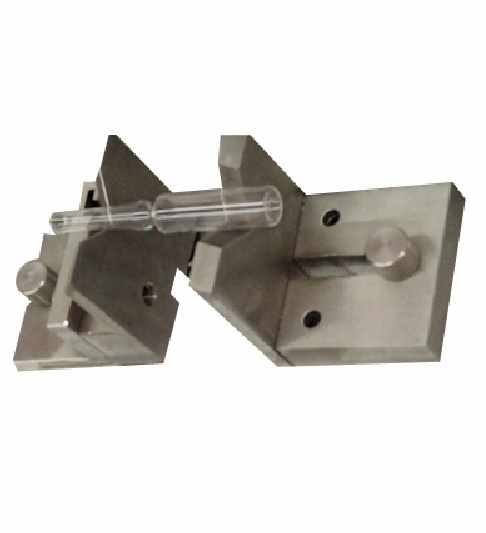

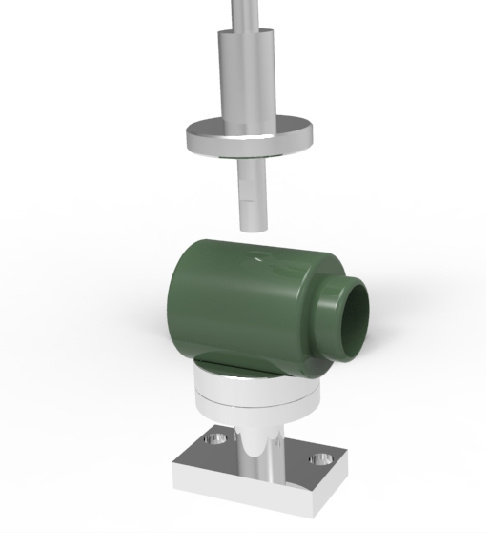

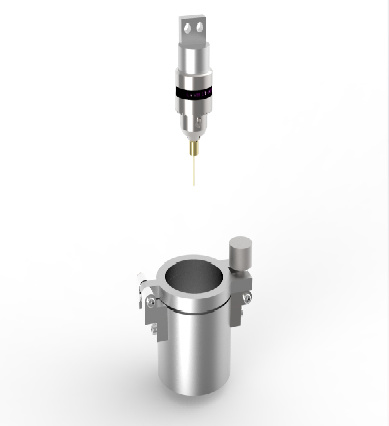

Test the mechanical properties of plastics, fabrics, and other materials, including: tensile, peeling, tearing, heat sealing, puncture, hanging, and pressure resistance. Optional test: an opening force of bottle cap, breaking force of ampoule bottle, and tilting angle force.

Standards:

GB 13022, GB 8808, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358, QB/T 1130, YBB00112003

Characteristics:

●High precision, error less than 0.01N. ●Many test modes provided, include tensile, peeling, tearing, heat sealing, puncture, hanging, and pressure resistance.

●Auto controlled by micro-computer.

●Led screen display test data in form of the curve.

●All digital, No mechanical knob, digital zero adjustments, and correction;

●Precision mechanical transmission, stepless speed regulation, automatic positioning, and displacement measurement.

●The national standard test parameters can be preset, and the parameters can also be set by themselves, which can be used for a long time.

●Statistics and sample printing in groups.

●A variety of safety protection modes ensure the safety and reliability of the test.

●the optional software module of the GMP computerization system, which fully meets the requirements of the GMP computerized system in Chinese Pharmacopoeia. its functions include user management, authority management, data audit tracking, etc.

Optional：

Specifications

Name	STR-A	STR-A+	STR-M	STR-D
Range	One of 300N, 1000N, 2000N			Two of 300N，1000N，2000N
Precision	1%	0.5%
Test range	0.02%～100% F.S.
Test distance	600 mm（optical 1000 mm）
Test width	0-50 mm
Test speed	0-350mm/min (optical 0-500 mm/min)
Speed precision	1%
functionality	Standard: tensile, peel, tear, heat seal Optional: puncture, opening, breaking, pressure resistance, and suspension
Computer software	No	Yes
Size	490mm(L)×340mm(B)×1170mm(H)
Power supply	AC 220V±10% 50Hz

Configuration:

Principle machine, one set of stretching fixtures, two sample plates, and other fixtures are selected and customized according to your demand.
